Ansible – 角色

Ansible – 角色


角色为变量、任务、文件、模板和模块的完全独立或相互依赖的集合提供了一个框架。

在 Ansible 中,角色是将剧本分成多个文件的主要机制。这简化了编写复杂剧本的过程,并使它们更易于重用。打破 playbook 允许您在逻辑上将 playbook 分解为可重用的组件。

每个角色基本上都限于特定的功能或所需的输出,所有必要的步骤都可以在该角色本身内或在列为依赖项的其他角色中提供该结果。

角色不是剧本。角色是可以独立使用但必须在剧本中使用的小功能。没有办法直接执行角色。角色没有明确设置角色将应用于哪个主机。

顶级 playbook 是将主机从清单文件连接到应应用于这些主机的角色的桥梁。

创建新角色

角色的目录结构对于创建新角色至关重要。

角色结构

角色在文件系统上具有结构化布局。默认结构可以更改,但现在让我们坚持使用默认值。

每个角色本身就是一个目录树。角色名称是 /roles 目录中的目录名称。

$ ansible-galaxy -h

用法

ansible-galaxy [delete|import|info|init|install|list|login|remove|search|setup] [--help] [options] ...

选项

  • -h, –help – 显示此帮助消息并退出。

  • -v, –verbose – 详细模式(-vvv 表示更多,-vvvv 启用连接调试)

  • –version – 显示程序的版本号并退出。

创建角色目录

上面的命令已经创建了角色目录。

$ ansible-galaxy init vivekrole
ERROR! The API server (https://galaxy.ansible.com/api/) is not responding, please try again later.

$ ansible-galaxy init --force --offline vivekrole
- vivekrole was created successfully

$ tree vivekrole/
vivekrole/
├── defaults
│   └── main.yml
├── files ├── handlers
│   └── main.yml
├── meta
│   └── main.yml
├── README.md ├── tasks
│   └── main.yml
├── templates ├── tests │   ├── inventory
│   └── test.yml
└── vars
    └── main.yml

8 directories, 8 files

并非所有目录都将在示例中使用,我们将在示例中展示其中一些目录的使用。

在 Playbook 中使用角色

这是我们为演示目的编写的剧本的代码。此代码来自剧本 vivek_orchestrate.yml。我们已经定义了主机:tomcat-node并调用了两个角色—— install-tomcatstart-tomcat

问题陈述是我们需要通过 Ansible 在机器上部署一场战争。

---
- hosts: tomcat-node
roles:
   - {role: install-tomcat}
   - {role: start-tomcat}

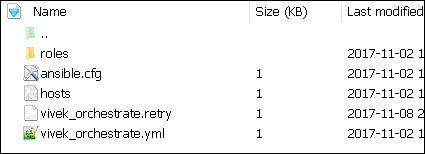

我们运行剧本的目录结构的内容。

目录

$ ls
ansible.cfg  hosts  roles  vivek_orchestrate.retry vivek_orchestrate.yml

角色

每个目录下都有一个tasks目录,其中包含一个main.yml。install-tomcat 的 main.yml 内容是 –

---
#Install vivek artifacts
-
   block:
      - name: Install Tomcat artifacts
         action: >
            yum name = "demo-tomcat-1" state = present
         register: Output

   always:
      - debug:
         msg:
            - "Install Tomcat artifacts task ended with message: {{Output}}"
            - "Installed Tomcat artifacts - {{Output.changed}}"

启动 tomcat 的 main.yml 的内容是 –

#Start Tomcat
-
   block:
      - name: Start Tomcat
      command: <path of tomcat>/bin/startup.sh"
      register: output
      become: true

   always:
      - debug:
         msg:
            - "Start Tomcat task ended with message: {{output}}"
            - "Tomcat started - {{output.changed}}"

将 playbook 分成角色的好处是,任何想要使用 Install tomcat 功能的人都可以调用 Install Tomcat 角色。

将剧本分解为角色

如果不是针对角色,可以将各个角色的 main.yml 的内容复制到 playbook yml文件中。但是为了具有模块化,创建了角色。

任何可以作为可重用功能重用的逻辑实体,该实体都可以移动到角色。这个例子如上所示

运行命令来运行剧本。

-vvv option for verbose output – verbose output
$ cd vivek-playbook/

这是运行剧本的命令

$ sudo ansible-playbook -i hosts vivek_orchestrate.yml –vvv
-----------------------------------------------------------------
-----------------------------------------------------------------------

输出

生成的输出如屏幕所示 –

使用/users/demo/vivek-playbook/ansible.cfg作为配置文件。

PLAYBOOK: vivek_orchestrate.yml *********************************************************
***********************************************************
1 plays in vivek_orchestrate.yml

PLAY [tomcat-node] **********************************************************************
******** *************************************************

TASK [Gathering Facts] *************************************************
****************************** *********************************************
Tuesday 21 November 2017  13:02:05 +0530 (0:00:00.056) 0:00:00.056 ******
Using module file /usr/lib/python2.7/sitepackages/ansible/modules/system/setup.py
<localhost> ESTABLISH LOCAL CONNECTION FOR USER: root
<localhost> EXEC /bin/sh -c 'echo ~ && sleep 0'
<localhost> EXEC /bin/sh -c '( umask 77 && mkdir -p "` echo
   /root/.ansible/tmp/ansible-tmp-1511249525.88-259535494116870 `" &&
   echo ansible-tmp-1511249525.88-259535494116870="`
   echo /root/.ansible/tmp/ansibletmp-1511249525.88-259535494116870 `" ) && sleep 0'
<localhost> PUT /tmp/tmpPEPrkd TO
   /root/.ansible/tmp/ansible-tmp-1511249525.88259535494116870/setup.py
<localhost> EXEC /bin/sh -c 'chmod u+x
   /root/.ansible/tmp/ansible-tmp1511249525.88-259535494116870/
   /root/.ansible/tmp/ansible-tmp-1511249525.88259535494116870/setup.py && sleep 0'
<localhost> EXEC /bin/sh -c '/usr/bin/python
   /root/.ansible/tmp/ansible-tmp1511249525.88-259535494116870/setup.py; rm -rf
   "/root/.ansible/tmp/ansible-tmp1511249525.88-259535494116870/" > /dev/null 2>&1 && sleep 0'
ok: [server1]
META: ran handlers

TASK [install-tomcat : Install Tomcat artifacts] ***********************************
***************************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:5
Tuesday 21 November 2017  13:02:07 +0530 (0:00:01.515)       0:00:01.572 ******
Using module file /usr/lib/python2.7/sitepackages/ansible/modules/packaging/os/yum.py
<localhost> ESTABLISH LOCAL CONNECTION FOR USER: root
<localhost> EXEC /bin/sh -c 'echo ~ && sleep 0'
<localhost> EXEC /bin/sh -c '( umask 77 && mkdir -p "` echo
   /root/.ansible/tmp/ansible-tmp-1511249527.34-40247177825302 `" && echo
   ansibletmp-1511249527.34-40247177825302="` echo
   /root/.ansible/tmp/ansible-tmp1511249527.34-40247177825302 `" ) && sleep 0'
<localhost> PUT /tmp/tmpu83chg TO
   /root/.ansible/tmp/ansible-tmp-1511249527.3440247177825302/yum.py
<localhost> EXEC /bin/sh -c 'chmod u+x
   /root/.ansible/tmp/ansible-tmp1511249527.34-40247177825302/
   /root/.ansible/tmp/ansible-tmp-1511249527.3440247177825302/yum.py && sleep 0'
<localhost> EXEC /bin/sh -c '/usr/bin/python
   /root/.ansible/tmp/ansible-tmp1511249527.34-40247177825302/yum.py; rm -rf
   "/root/.ansible/tmp/ansible-tmp1511249527.34-40247177825302/" > /dev/null 2>
   &1 && sleep 0'
changed: [server1] => {
   "changed": true,
   "invocation": {
      "module_args": {
         "conf_file": null,
         "disable_gpg_check": false,
         "disablerepo": null,
         "enablerepo": null,
         "exclude": null,
         "install_repoquery": true,
         "installroot": "/",
         "list": null,
         "name": ["demo-tomcat-1"],
         "skip_broken": false,
         "state": "present",
         "update_cache": false,
         "validate_certs": true
      }
   },
   "msg": "",
   "rc": 0,
   "results": [
      "Loaded plugins: product-id,
      search-disabled-repos,
      subscriptionmanager\nThis system is not registered to Red Hat Subscription Management.
      You can use subscription-manager to register.\nResolving Dependencies\n-->
      Running transaction check\n--->
      Package demo-tomcat-1.noarch 0:SNAPSHOT-1 will be installed\n--> Finished Dependency
      Resolution\n\nDependencies Resolved\n
      \n================================================================================\n
      Package Arch Version Repository
      Size\n==================================================================\nInstalling:\n
      demo-tomcat-1 noarch SNAPSHOT-1 demo-repo1 7.1 M\n\nTransaction
      Summary\n==================================================================\nInstall  1
      Package\n\nTotal download size: 7.1 M\nInstalled size: 7.9 M\nDownloading
         packages:\nRunning transaction
      check\nRunning transaction test\nTransaction test succeeded\nRunning transaction\n  Installing :
      demotomcat-1-SNAPSHOT-1.noarch 1/1 \n  Verifying  :
      demo-tomcat-1-SNAPSHOT-1.noarch 1/1 \n\nInstalled:\n
      demo-tomcat-1.noarch 0:SNAPSHOT-1 \n\nComplete!\n"
   ]
}

TASK [install-tomcat : debug] **********************************************************
***************************************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:11
Tuesday 21 November 2017  13:02:13 +0530 (0:00:06.757) 0:00:08.329 ******
ok: [server1] => {
   "changed": false,
   "msg": [
      "Install Tomcat artifacts task ended with message: {
         u'msg': u'', u'changed': True, u'results':
         [u'Loaded plugins: product-id,
         search-disabledrepos,
         subscription-manager\\nThis system is not registered to Red Hat Subscription Management.
         You can use subscription-manager to register.\\nResolving Dependencies\\n-->
         Running transaction check\\n--->
         Package demo-tomcat-1.noarch 0:SNAPSHOT-1 will be installed\\n-->
         Finished Dependency Resolution\\n
         \\nDependencies
         Resolved\\n\\n==================================================================\\n
         Package Arch Version Repository
         Size\\n========================================================================
         =====\\nInstalling:\\n demo-tomcat-1 noarch SNAPSHOT-1 demo-repo1 7.1 M\\n\\nTransaction
         Summary\\n=========================================================\\nInstall  1
         Package\\n\\nTotal download size: 7.1 M\\nInstalled size: 7.9 M\\nDownloading
            packages:\\nRunning
         transaction check\\nRunning transaction test\\nTransaction test succeeded\\nRunning
            transaction\\n
         Installing : demo-tomcat-1-SNAPSHOT-1.noarch 1/1 \\n  Verifying  :
         demo-tomcat-1-SNAPSHOT-1.noarch
         1/1 \\n\\nInstalled:\\n  demo-tomcat-1.noarch 0:SNAPSHOT-1  \\n\\nComplete!\\n'], u'rc': 0
      }",
      "Installed Tomcat artifacts - True"
   ]
}

TASK [install-tomcat : Clean DEMO environment] ****************************************
************************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:19
Tuesday 21 November 2017  13:02:13 +0530 (0:00:00.057) 0:00:08.387 ******
[WARNING]: when statements should not include jinja2 templating delimiters such as {{ }} or
   {% %}. Found: {{installationOutput.changed}}

Using module file /usr/lib/python2.7/sitepackages/ansible/modules/files/file.py
<localhost> ESTABLISH LOCAL CONNECTION FOR USER: root
<localhost> EXEC /bin/sh -c 'echo ~ && sleep 0'
<localhost> EXEC /bin/sh -c '( umask 77 && mkdir -p "` echo
   /root/.ansible/tmp/ansible-tmp-1511249534.13-128345805983963 `" && echo
   ansible-tmp-1511249534.13-128345805983963="` echo
   /root/.ansible/tmp/ansibletmp-1511249534.13-128345805983963 `" ) && sleep 0'
<localhost> PUT /tmp/tmp0aXel7 TO
   /root/.ansible/tmp/ansible-tmp-1511249534.13128345805983963/file.py
<localhost> EXEC /bin/sh -c 'chmod u+x
   /root/.ansible/tmp/ansible-tmp1511249534.13-128345805983963/
   /root/.ansible/tmp/ansible-tmp-1511249534.13128345805983963/file.py && sleep 0'
<localhost> EXEC /bin/sh -c '/usr/bin/python
   /root/.ansible/tmp/ansible-tmp1511249534.13-128345805983963/file.py; rm -rf
   "/root/.ansible/tmp/ansible-tmp1511249534.13-128345805983963/" > /dev/null 2>&1
   && sleep 0'
changed: [server1] => {
   "changed": true,
      "diff": {
         "after": {
            "path": "/users/demo/DEMO",
            "state": "absent"
      },
      "before": {
         "path": "/users/demo/DEMO",
         "state": "directory"
      }
   },

   "invocation": {
      "module_args": {
         "attributes": null,
         "backup": null,
         "content": null,
         "delimiter": null,
         "diff_peek": null,
         "directory_mode": null,
         "follow": false,
         "force": false,
         "group": null,
         "mode": null,
         "original_basename": null,
         "owner": null,
         "path": "/users/demo/DEMO",
         "recurse": false,
         "regexp": null,
         "remote_src": null,
         "selevel": null,
         "serole": null,
         "setype": null,
         "seuser": null,
         "src": null,
         "state": "absent",
         "unsafe_writes": null,
         "validate": null
      }
   },
   "path": "/users/demo/DEMO",
   "state": "absent"
}

TASK [install-tomcat : debug] ********************************************************
*************************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:29
Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.257)       0:00:08.645 ******
ok: [server1] => {
   "changed": false,
   "msg": [
      "Clean DEMO environment task ended with message:{u'diff': {u'after': {u'path':
         u'/users/demo/DEMO', u'state': u'absent'},
      u'before': {u'path': u'/users/demo/DEMO', u'state': u'directory'}}, u'state': u'absent',
         u'changed': True, u'path': u'/users/demo/DEMO'}",
      "check value  :True"
   ]
}

TASK [install-tomcat : Copy Tomcat to user home] *************************************
********************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:37
Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.055)       0:00:08.701 ******
[WARNING]: when statements should not include jinja2 templating delimiters such as {{ }} or
   {% %}. Found: {{installationOutput.changed}}

Using module file /usr/lib/python2.7/sitepackages/ansible/modules/commands/command.py
<localhost> ESTABLISH LOCAL CONNECTION FOR USER: root
<localhost> EXEC /bin/sh -c 'echo ~ && sleep 0'
<localhost> EXEC /bin/sh -c '( umask 77 && mkdir -p "` echo
   /root/.ansible/tmp/ansible-tmp-1511249534.43-41077200718443 `" && echo
   ansibletmp-1511249534.43-41077200718443="` echo
   /root/.ansible/tmp/ansible-tmp1511249534.43-41077200718443 `" ) && sleep 0'
<localhost> PUT /tmp/tmp25deWs TO
   /root/.ansible/tmp/ansible-tmp-1511249534.4341077200718443/command.py
<localhost> EXEC /bin/sh -c 'chmod u+x
   /root/.ansible/tmp/ansible-tmp1511249534.43-41077200718443/
   /root/.ansible/tmp/ansible-tmp-1511249534.4341077200718443/command.py && sleep 0'
<localhost> EXEC /bin/sh -c '/usr/bin/python
   /root/.ansible/tmp/ansible-tmp1511249534.43-41077200718443/command.py; rm -rf
   "/root/.ansible/tmp/ansibletmp-1511249534.43-41077200718443/" > /dev/null 2>&1
   && sleep 0'
changed: [server1] => {
   "changed": true,
   "cmd": [
      "cp",
      "-r",
      "/opt/ansible/tomcat/demo",
      "/users/demo/DEMO/"
   ],
   "delta": "0:00:00.017923",
   "end": "2017-11-21 13:02:14.547633",
   "invocation": {
      "module_args": {
         "_raw_params": "cp -r /opt/ansible/tomcat/demo /users/demo/DEMO/",
         "_uses_shell": false,
         "chdir": null,
         "creates": null,
         "executable": null,
         "removes": null,
         "warn": true
      }
   },
   "rc": 0,
   "start": "2017-11-21 13:02:14.529710",
   "stderr": "",
   "stderr_lines": [],
   "stdout": "",
   "stdout_lines": []
}

TASK [install-tomcat : debug] ********************************************************
**********************************************************
task path: /users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:47
Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.260)       0:00:08.961 ******
ok: [server1] => {
   "changed": false,
   "msg": "Copy Tomcat to user home task ended with message {
      'stderr_lines': [], u'changed': True, u'end': u'2017-11-21 13:02:14.547633', u'stdout':
      u'', u'cmd': [u'cp', u'-r', u'/opt/ansible/tomcat/demo', u'/users/demo/DEMO/'], u'rc': 0,
      u'start': u'2017-11-21 13:02:14.529710', u'stderr': u'', u'delta': u'0:00:00.017923',
      'stdout_lines': []}"
}

TASK [start-tomcat : Start Tomcat] **************************************************
**********************************************************
task path: /users/demo/vivek-playbook/roles/start-tomcat/tasks/main.yml:5
Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.044)       0:00:09.006 ******
Using module file /usr/lib/python2.7/sitepackages/ansible/modules/commands/command.py
<localhost> ESTABLISH LOCAL CONNECTION FOR USER: root
<localhost> EXEC /bin/sh -c 'echo ~ && sleep 0'
<localhost> EXEC /bin/sh -c '( umask 77 && mkdir -p "` echo
   /root/.ansible/tmp/ansible-tmp-1511249534.63-46501211251197 `" && echo
   ansibletmp-1511249534.63-46501211251197="` echo
   /root/.ansible/tmp/ansible-tmp1511249534.63-46501211251197 `" ) && sleep 0'
<localhost> PUT /tmp/tmp9f06MQ TO
   /root/.ansible/tmp/ansible-tmp-1511249534.6346501211251197/command.py
<localhost> EXEC /bin/sh -c 'chmod u+x
   /root/.ansible/tmp/ansible-tmp1511249534.63-46501211251197/
   /root/.ansible/tmp/ansible-tmp-1511249534.6346501211251197/command.py && sleep 0'
<localhost> EXEC /bin/sh -c '/usr/bin/python
   /root/.ansible/tmp/ansible-tmp1511249534.63-46501211251197/command.py; rm -rf
   "/root/.ansible/tmp/ansibletmp-1511249534.63-46501211251197/" > /dev/null 2>&1
   && sleep 0'
changed: [server1] => {
   "changed": true,
   "cmd": [ "/users/demo/DEMO/bin/startup.sh" ],
   "delta": "0:00:00.020024",
   "end": "2017-11-21 13:02:14.741649",
   "invocation": {
      "module_args": {
         "_raw_params": "/users/demo/DEMO/bin/startup.sh",
         "_uses_shell": false,
         "chdir": null,
         "creates": null,
         "executable": null,
         "removes": null,
         "warn": true
      }
   },
   "rc": 0,
   "start": "2017-11-21 13:02:14.721625",
   "stderr": "",
   "stderr_lines": [],
   "stdout": "Tomcat started.",
   "stdout_lines": [ "Tomcat started." ]
}

TASK [start-tomcat : debug] *************************************************
**********************************************************************
task path: /users/demo/vivek-playbook/roles/start-tomcat/tasks/main.yml:10
Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.150)       0:00:09.156 ******
ok: [server1] => {
   "changed": false,
   "msg": [
      "Start Tomcat task ended with message: {'
         stderr_lines': [], u'changed': True, u'end': u'2017-11-21 13:02:14.741649', u'stdout':
         u'Tomcat started.', u'cmd': [u'/users/demo/DEMO/bin/startup.sh'], u'rc': 0, u'start':
         u'2017-11-21 13:02:14.721625', u'stderr': u'', u'delta': u'0:00:00.020024',
         'stdout_lines': [u'Tomcat started.']}",
      "Tomcat started - True"
   ]
}
META: ran handlers
META: ran handlers

PLAY RECAP *******************************************************************************
*********************************************************
server1  : ok = 9    changed = 4    unreachable = 0    failed = 0

Tuesday 21 November 2017  13:02:14 +0530 (0:00:00.042)       0:00:09.198 ******
===============================================================================
install-tomcat : Install Tomcat artifacts ------------------------------- 6.76s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:5 --------------
Gathering Facts --------------------------------------------------------- 1.52s
 ------------------------------------------------------------------------------
install-tomcat : Copy Tomcat to user home ------------------------------- 0.26s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:37 -------------

install-tomcat : Clean DEMO environment --------------------------------- 0.26s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:19 -------------

start-tomcat : Start Tomcat --------------------------------------------- 0.15s
/users/demo/vivek-playbook/roles/start-tomcat/tasks/main.yml:5 ----------------

install-tomcat : debug -------------------------------------------------- 0.06s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:11 -------------

install-tomcat : debug -------------------------------------------------- 0.06s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:29 -------------

install-tomcat : debug -------------------------------------------------- 0.04s
/users/demo/vivek-playbook/roles/install-tomcat/tasks/main.yml:47 -------------

start-tomcat : debug ---------------------------------------------------- 0.04s
/users/demo/vivek-playbook/roles/start-tomcat/tasks/main.yml:10 ---------------

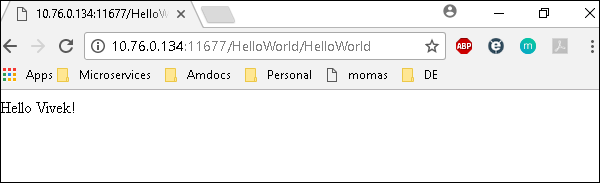

点击以下 URL,您将被定向到如下所示的页面 – http://10.76.0.134:11677/HelloWorld/HelloWorld

你好,世界

部署的战争只有一个显示“Hello World”的 servlet。由于 ansible.cfg 文件中添加的条目,详细输出显示了每个任务所花费的时间 –

[defaults]
callback_whitelist = profile_tasks

觉得文章有用?

点个广告表达一下你的爱意吧 !😁
