Concordion – 运行命令

Concordion – 运行命令


Concordion 运行命令可用于将多个规格链接在一起并在一个中央页面上显示它们。此命令可以运行所有规范,同时以适当的绿色/红色/灰色显示链接的背景。

现在我们将创建两个规范并将它们链接在一起。我们将重用在Concordion – Execute on ListConcordion – Execute on Table章节中创建的规范作为系统规范和计算器规范。

例子

让我们有一个可用的 Eclipse IDE,并按照下面给出的步骤创建一个 Concordion 应用程序 –

Step 描述
1 创建一个名为concordion的项目,在创建的项目src文件夹创建一个包com.tutorialspoint
2 使用添加外部 JAR选项添加所需的 Concordion 库,Concordion – First Application章节中所述。
3 com.tutorialspoint创建 Java 类System
4 创建夹具类SystemFixtureCalculatorFixturespecs.tutorialspoint包。
5 建立规范的HTML文件System.htmlCalculator.htmlspecs.tutorialspoint包。
6 最后一步是创建所有 Java 文件和规范文件的内容并运行应用程序,如下所述。

这是 System.java 文件的内容 –

package com.tutorialspoint;
import org.concordion.api.MultiValueResult;

public class System {
   public MultiValueResult split(String userName){
      MultiValueResult result = new MultiValueResult();
      String[] words = userName.split(" ");
      result.with("firstName", words[0]).with("lastName", words[1]);
      return result;
   }

   public int sum(int firstNumber, int secondNumber) {
      return firstNumber + secondNumber;
   }
}

以下是 SystemFixture.java 文件的内容 –

package specs.tutorialspoint;

import org.concordion.api.MultiValueResult;
import org.concordion.integration.junit4.ConcordionRunner;
import org.junit.runner.RunWith;
import com.tutorialspoint.System;

@RunWith(ConcordionRunner.class)

public class SystemFixture {
   System system = new System();
   public MultiValueResult split(String userName){
      return system.split(userName);
   }
}

以下是 CalculatorFixture.java 文件的内容 –

package specs.tutorialspoint;

import org.concordion.integration.junit4.ConcordionRunner;
import org.junit.runner.RunWith;
import com.tutorialspoint.System;

@RunWith(ConcordionRunner.class)

public class CalculatorFixture {
   System system = new System();
   public int sum(int firstNumber, int secondNumber) {
      return system.sum(firstNumber, secondNumber);
   }
}

以下是 System.html 文件的内容 –

<html xmlns:concordion = "http://www.concordion.org/2007/concordion">
   <head>
      <link href = "../concordion.css" rel = "stylesheet" type = "text/css" />
   </head>

   <body>
      <h1>System Specifications</h1>
      <p>We are building specifications for our online
         order tracking application.</p>
      <p>Following is the requirement to split full name of a
         logged in user to its constituents by splitting name by whitespace:</p>

      <div class = "example">
         <h3>Example</h3>

         <ul>
            <li>The full name <span concordion:execute = "#result = split(#TEXT)">
               Robert De</span> is to be splited as
               <ul>
                  <li><span concordion:assertEquals = "#result.firstName">
                     Robert</span></li>
                  <li><span concordion:assertEquals = "#result.lastName">
                     De</span></li>
               </ul>
            </li>

            <li>The full name <span concordion:execute = "#result = split(#TEXT)">
               John Diere</span> is to be splited as
               <ul>
                  <li><span concordion:assertEquals = "#result.firstName">
                     John</span></li>
                  <li><span concordion:assertEquals = "#result.lastName">
                     Diere</span></li>
               </ul>
            </li>

         </ul>
      </div>

      <a concordion:run = "concordion" href = "Calculator.html">
         Calculator Service Specifications</a>
   </body>

</html>

以下是 Calculator.html 文件的内容 –

<html xmlns:concordion = "http://www.concordion.org/2007/concordion">
   <head>
      <link href = "../concordion.css" rel = "stylesheet" type = "text/css" />
   </head>

   <body>
      <h1>Calculator Specifications</h1>
      <p>We are building online calculator support in our website.</p>
      <p>Following is the requirement to add two numbers:</p>

      <div class = "example">
         <h3>Example</h3>

         <table>
            <tr>
               <th>First Number</th>
               <th>Second Number</th>
               <th>Sum</th>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">2</td>
               <td concordion:set = "#secondNumber">3</td>
               <td concordion:assertEquals = "#result">5</td>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">4</td>
               <td concordion:set = "#secondNumber">5</td>
               <td concordion:assertEquals = "#result">9</td>
            </tr>
         </table>

      </div>
   </body>

</html>

完成创建源文件和规范文件后,让我们将应用程序作为 JUnit 测试运行。如果您的应用程序一切正常,那么它将产生以下结果 –

C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\concordion\specs\tutorialspoint\System.html
Successes: 2, Failures: 0
C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\concordion\specs\tutorialspoint\System.html
Successes: 6, Failures: 0

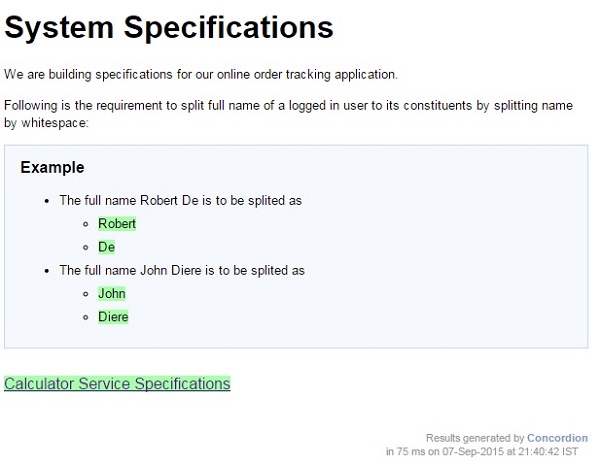

System.html 是 Concordion 测试运行的输出。

concordion 运行命令输出

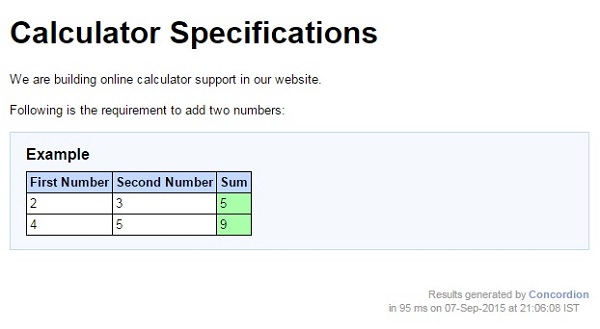

单击链接计算器服务规范。您将看到以下输出 –

协和输出
