ASP.NET MVC – 数据模型
ASP.NET MVC – 数据模型
在本章中,我们将讨论在 ASP.NET MVC 框架应用程序中构建模型。甲模型存储被根据来自控制器的命令检索并在视图中显示的数据。
模型是一组类,您将在其中处理数据和业务逻辑。因此,基本上模型是特定于业务领域的容器。它用于与数据库交互。它还可以用于操作数据以实现业务逻辑。
让我们通过创建一个新的 ASP.Net MVC 项目来看看 Model 的一个简单示例。
步骤 1 – 打开 Visual Studio。单击文件 → 新建 → 项目菜单选项。

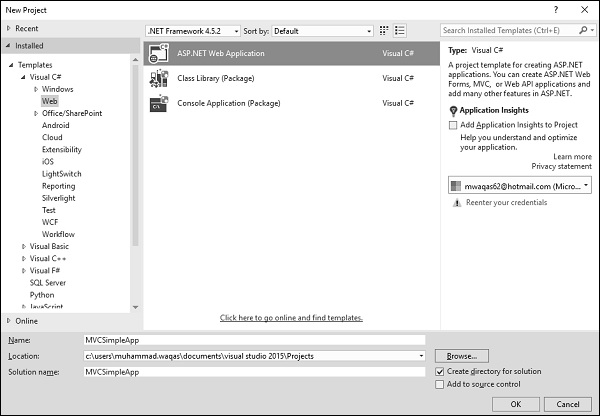

一个新的项目对话框打开。
步骤 2 – 从左侧窗格中,选择模板 → Visual C# → Web。
步骤 3 – 在中间窗格中,选择 ASP.NET Web 应用程序。

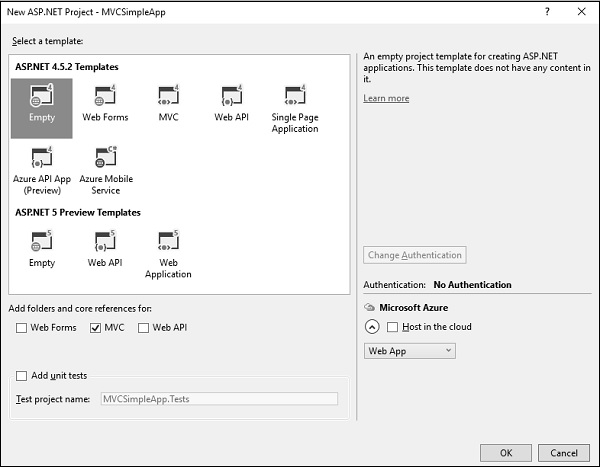

第 4 步– 在名称字段中输入项目名称“MVCSimpleApp”,然后单击确定继续。您将看到以下对话框,要求您设置 ASP.NET 项目的初始内容。
第 5 步– 为简单起见,选择“空”选项并选中“添加文件夹和核心引用”部分中的 MVC 复选框,然后单击“确定”。
它将创建一个具有最少预定义内容的基本 MVC 项目。
我们现在需要添加一个控制器。
步骤 6 – 右键单击解决方案资源管理器中的控制器文件夹,然后选择添加 → 控制器。

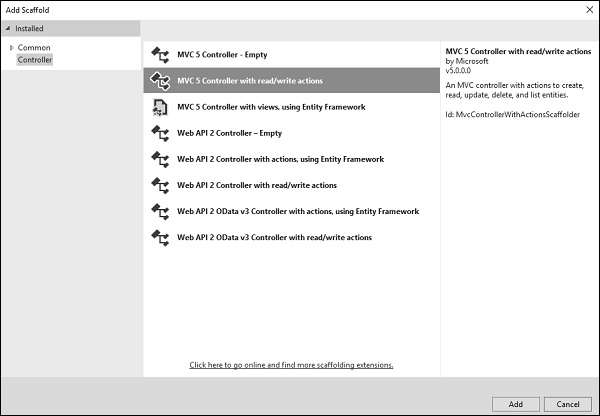

它将显示“添加脚手架”对话框。
步骤 7 – 选择 MVC 5 控制器 – 带有读/写操作选项。此模板将为 Controller 创建一个具有默认操作的 Index 方法。这还将列出其他方法,如编辑/删除/创建。
步骤 8 – 单击“添加”按钮,将出现“添加控制器”对话框。
第 9 步– 将名称设置为 EmployeeController 并单击“添加”按钮。
第 10 步– 您将在 Controllers 文件夹中看到一个新的 C# 文件“EmployeeController.cs”,该文件在 Visual Studio 中打开以使用一些默认操作进行编辑。
using System; using System.Collections.Generic; using System.Linq; using System.Web; using System.Web.Mvc; namespace MVCSimpleApp.Controllers { public class EmployeeController : Controller{ // GET: Employee public ActionResult Index(){ return View(); } // GET: Employee/Details/5 public ActionResult Details(int id){ return View(); } // GET: Employee/Create public ActionResult Create(){ return View(); } // POST: Employee/Create [HttpPost] public ActionResult Create(FormCollection collection){ try{ // TODO: Add insert logic here return RedirectToAction("Index"); }catch{ return View(); } } // GET: Employee/Edit/5 public ActionResult Edit(int id){ return View(); } // POST: Employee/Edit/5 [HttpPost] public ActionResult Edit(int id, FormCollection collection){ try{ // TODO: Add update logic here return RedirectToAction("Index"); }catch{ return View(); } } // GET: Employee/Delete/5 public ActionResult Delete(int id){ return View(); } // POST: Employee/Delete/5 [HttpPost] public ActionResult Delete(int id, FormCollection collection){ try{ // TODO: Add delete logic here return RedirectToAction("Index"); }catch{ return View(); } } } }
让我们添加一个模型。

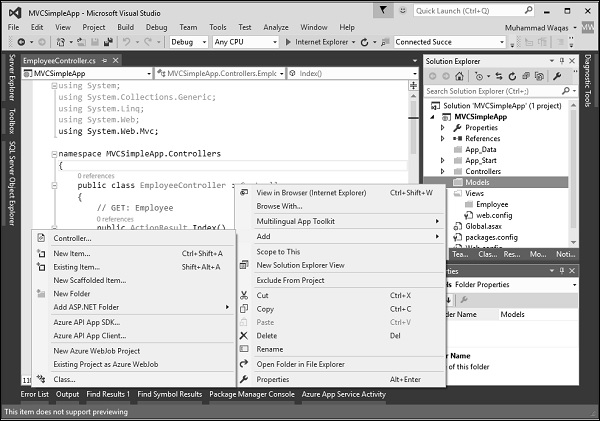

步骤 11 – 右键单击解决方案资源管理器中的模型文件夹,然后选择添加 → 类。

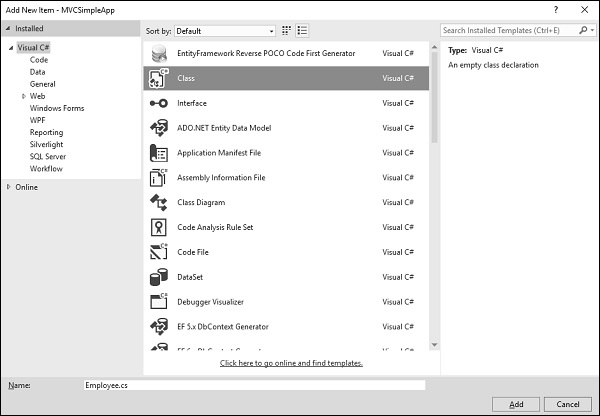

您将看到“添加新项目”对话框。
步骤 12 – 在中间盘中选择 Class 并在 name 字段中输入 Employee.cs。
步骤 13 – 使用以下代码向 Employee 类添加一些属性。
using System; using System.Collections.Generic; using System.Linq; using System.Web; namespace MVCSimpleApp.Models { public class Employee{ public int ID { get; set; } public string Name { get; set; } public DateTime JoiningDate { get; set; } public int Age { get; set; } } }
让我们通过添加另一个方法来更新 EmployeeController.cs 文件,该方法将返回员工列表。
[NonAction] public List<Employee> GetEmployeeList(){ return new List<Employee>{ new Employee{ ID = 1, Name = "Allan", JoiningDate = DateTime.Parse(DateTime.Today.ToString()), Age = 23 }, new Employee{ ID = 2, Name = "Carson", JoiningDate = DateTime.Parse(DateTime.Today.ToString()), Age = 45 }, new Employee{ ID = 3, Name = "Carson", JoiningDate = DateTime.Parse(DateTime.Today.ToString()), Age = 37 }, new Employee{ ID = 4, Name = "Laura", JoiningDate = DateTime.Parse(DateTime.Today.ToString()), Age = 26 }, }; }
步骤 14 – 更新索引操作方法,如下面的代码所示。
public ActionResult Index(){ var employees = from e in GetEmployeeList() orderby e.ID select e; return View(employees); }

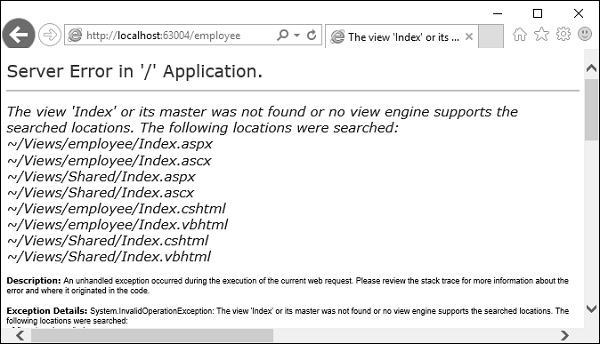

第 15 步– 运行此应用程序并将 /employee 附加到浏览器中的 URL,然后按 Enter。您将看到以下输出。
如上面的截图所示,有一个错误,这个错误实际上是非常具有描述性的,它告诉我们它找不到索引视图。

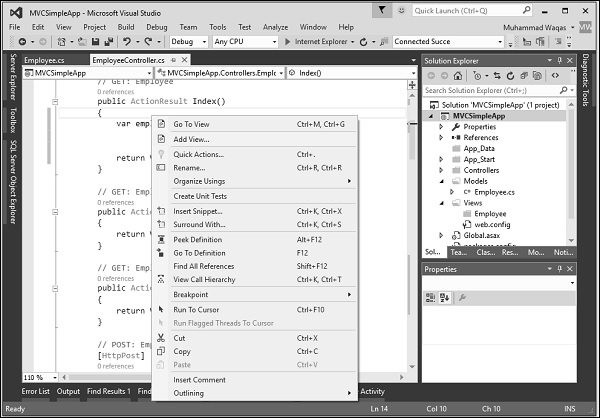

步骤 16 – 因此,要添加视图,请在“索引”操作内右键单击并选择“添加视图”。

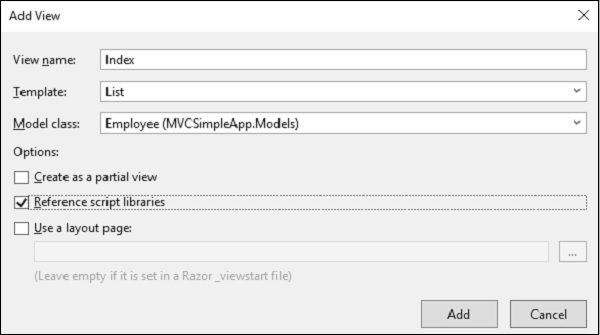

它将显示“添加视图”对话框,并将添加默认名称。
步骤 17 – 从模板下拉列表和模型类下拉列表中的员工中选择列表,并取消选中“使用布局页面”复选框并单击“添加”按钮。
它将在此视图中为您添加一些默认代码。
@model IEnumerable<MVCSimpleApp.Models.Employee> @{ Layout = null; } <!DOCTYPE html> <html> <head> <meta name = "viewport" content = "width = device-width" /> <title>Index</title> </head> <body> <p>@Html.ActionLink("Create New", "Create")</p> <table class = "table"> <tr> <th> @Html.DisplayNameFor(model => model.Name) </th> <th> @Html.DisplayNameFor(model => model.JoiningDate) </th> <th> @Html.DisplayNameFor(model => model.Age) </th> <th></th> </tr> @foreach (var item in Model) { <tr> <td> @Html.DisplayFor(modelItem => item.Name) </td> <td> @Html.DisplayFor(modelItem => item.JoiningDate) </td> <td> @Html.DisplayFor(modelItem => item.Age) </td> <td> @Html.ActionLink("Edit", "Edit", new { id = item.ID }) | @Html.ActionLink("Details", "Details", new { id = item.ID }) | @Html.ActionLink("Delete", "Delete", new { id = item.ID }) </td> </tr> } </table> </body> </html>

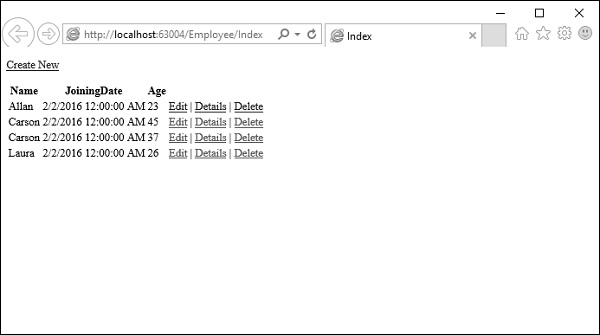

步骤 18 – 运行此应用程序,您将收到以下输出。
将显示员工列表。
